( Դçѹӻҹҧ )
Series : WCM
Medium Head Centrifugal Pump
( 1/2HP - 5HP )

Mitsubishi WCM çѹӻҹҧҡ
Ѻ ٺ 㹧ҹҧ ɵá
صˡ ͧҹ ҹл ҹŻзҹ
ʻԧôӵҧ к觹ѵѵ кçѹ٧
Ѻ;ѡ ͹ ç
֧çҹ ͧ÷駻ҳçѹ٧
- кͧѹ THERMAL PROTECTOR ( ¡ 1505 , 2205 , 3705 )
- 㺾Ѵ᡹ҷӴᵹ
( WCM-5505FT , WCM-7505FT , WCM-11005FT 㺾Ѵͧͧ )


DIMENSION WCM


Performance Range
- Power up to 5HP (3.7kW)
- Flow rate up to 550 L/min
- Total Dynamic Head up to 48 m

Features
- Mitsubishi Electric induction motor totally enclose fan cooled type IP55 protection with insulation class F for continous operation
- Built-in thermal protector in 1/2HP to 1 1/2HP model
- Stainless steel (SUS304) impeller with laser welding for highest strength
- Cast iron pump body with stainless steel (SUS304) shaft

Application
- Suitble for rain and gravity irrigation. Making automatic water system with high pressure supply for apartment hotel
or condominium including various kind of sprinkler and industrial uses where both high delivery rate and head are required


Model


HP

KW

çѹ俿
( V )

()

ҳ
Ե/ҷ

͹
x

Ҥ
ACM-375S
1/2
0.37
220V
10 - 7
0 - 250
1 1/2 x 1 1/2
3,251 -
WCM-755S
1
0.75
220V
17.2 - 7.6
0 - 450
2 x 2
4,614 -
WCM-755SH
1
0.75
220V
21 - 16
0 - 250
1 1/2 x 1 1/2
4,696 -
WCM-1105S
1.5
1.1
220V
20.7 - 8.9
0 - 500
2 x 2
5,685 -

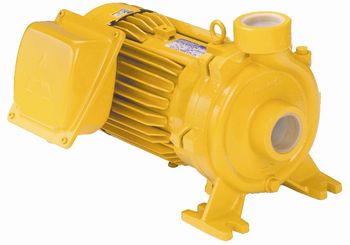

WCM-1505S
2
1.5
220V
26.4 - 13.2
0 - 550
2 x 2
8,067 -
WCM-1505T
2
1.5
380V
26.4 - 13.2
0 - 550
2 x 2
7,572 -
WCM-2205S
3
2.2
220V
32 - 15
0 - 550
2 x 2
8,962 -
WCM-2205T
3
2.2
380V
32 - 15
0 - 550
2 x 2
8,479 -

Model


HP

KW

çѹ俿
( V )

()

ҳ
Ե/ҷ

͹
x

Ҥ
WCM-755FS
1
0.75
220V
17.2 - 7.6
0 - 450
2 x 2
5,352 -
WCM-1105FS
1.5
1.1
220V
20.7 - 8.9
0 - 500
2 x 2
6,419 -
WCM-1505FS
2
1.5
220V
26.4 - 13.2
0 - 550
2 x 2
9,055 -
WCM-1505FT
2
1.5
380V
26.4 - 13.2
0 - 550
2 x 2
8,295 -
WCM-2205FS
3
2.2
220V
32 - 15
0 - 550
2 x 2
10,299 -
WCM-2205FT
3
2.2
380V
32 - 15
0 - 550
2 x 2
9,633 -
WCM-3705FS
5
3.7
220V
48.2 - 32.9
0 - 500
2 x 1 1/4
12,572 -
WCM-3705FT
5
3.7
380V
48.2 - 32.9
0 - 500
2 x 1 1/4
11,974 -
˹Ź
-WCM-1505S
-WCM-1105S
* ҤҹŤ  ռŵ 1 .. 60
   ҤҨ¹ŧҺǧ˹
Ҥһ ԵٺԪ WCM
-ACM-375S
-WCM-755FS
-WCM_FL
-WCM-2205S
